blooming fuses in glovebox	Please Register to enjoy additional Member Benefits

Author

Post

Grumpy GrandPa United Kingdom

Mon Jun 04 2018, 06:33pm

Member No: #10746

Joined: Aug 28 2009
Location: Hull: UK City of Culture 2017

C4 VTR+ 2011 blooming fuses.

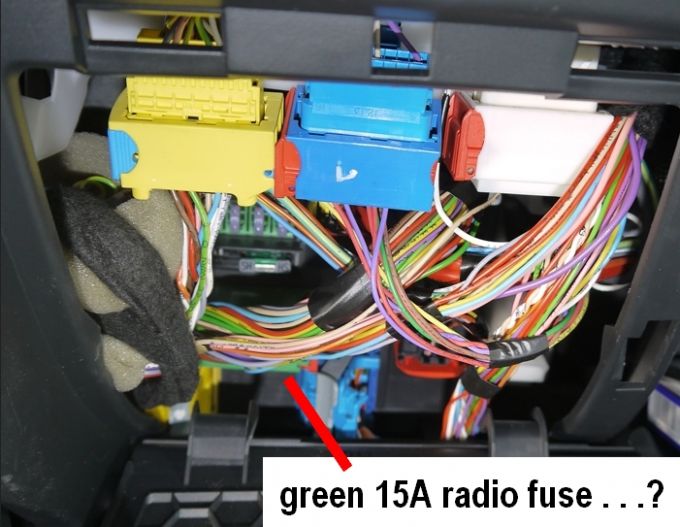

The internal ones, in glove box, are neigh on impossible to get at. It's a right rats nest in there.

Has any got photo of positon of radio fuses please - seem to be 15A acc to handbook? Took one out, thought put it back in correct place but radio is dead . . . . . .

ALL I wanted to do was to use a piggyback fuse to hardwire a dashcam into the C4

Can the large connectors be removed in order to gain easy/easier access to the fuses?

Grumpy GrandPa United Kingdom

Tue Jun 05 2018, 07:44pm

Member No: #10746

Joined: Aug 28 2009
Location: Hull: UK City of Culture 2017

hmmm.. Done it. Took a lot of faffing around inc removing the glovebox but when I got it soretd it all worked BUT didn't turn off with the ignition as was piggybacking onto the radio fuse.
Used another fuse slot - F13 cigarette lighter - so the dash cam came on and turned off with the ignition.
Hiding the wires in the a pillar and roof lining was easy.
Interesting how I always seem to have a couple of screws or plastic pop studs left over after such a job.. . . . just as well i am not a surgeon
