How to - Repair a loose front seat height adjuster handle	Please Register to enjoy additional Member Benefits

Author

Post

commbdown United Kingdom

Tue Jul 21 2015, 07:22am

Member No: #37656

Joined: Oct 11 2014
Location: Isle of Man

Hi,

I have a 2008 C4GP VTR+ - happy enough with it but yesterday I got in to adjust the height from my wife's 5'6 setting to my 6'4 setting and the handle went loose as if something had snapped.

I did a bit of reading and discovered it could be a couple of torx bolts come out so I set about trying to remove the plastic trim. I failed, and I couldn't find any resource that instructed or gave any clue how the side trim comes off.

I managed to lever the trim away a little bit and could see a single large Torx Bolt with a non-slip washer on it which was over time slipping around and undoing with the handle mechanism - this needed tightening.

As I felt I was going to damage the plastics more and more by prising them off or getting a Clarkson hammer on it I came up with another plan.

I put the passenger seat all the way forward, and the drivers one to the rear - this gave me another space to get my electric drill in lined up.

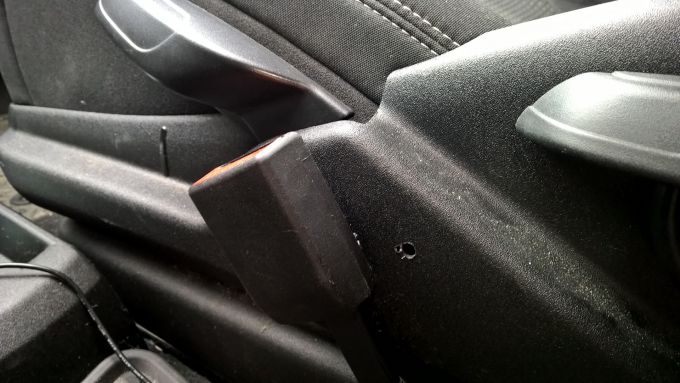

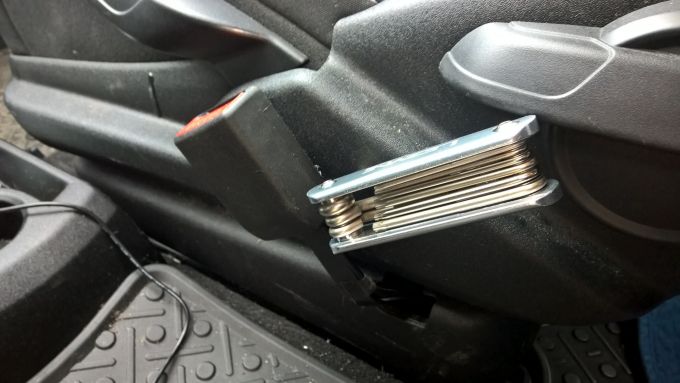

With a 6mm drill I made a small hole in line with this bolt, just behind the seatbelt connector and was able to put the largest Torx (I think it's a T30) from my multitool and push it onto the bolt - I was then able to tighten it and the seat now goes up and down - the hole is almost invisible once the seats are back in their usual places. Images below are before I rubbed the bits off the hole with a bit of sandpaper and I've got a blob of black sticky stuff I could squeeze in there.

1 User said Thank You to commbdown for this Post :
petercollins (21 Jul 2015 : 13:14)

Dave_Retired. United Kingdom

Tue Jul 21 2015, 08:08am

Member No: #1

Joined: Aug 07 2006
Location: Northumberland

Nice simple solution. Rather than a 'blob' of black sticky stuff use a rubber blanking grommet, or the plack cap off a number plate screw cover and it will look like it was always supposed to be there

rusky

Tue Jul 21 2015, 05:31pm

Member No: #27768

Joined: Oct 13 2012
Location: Hove

The plastic trim comes off easy enough, you just need to pull the reclining lever off first.
