C4 / DS4 door panel removal for speaker upgrade

Home   Forum Rules    Forum Help  Conversion Tools

Please Register to enjoy additional Member Benefits
Top Thanked Forum Posts: Today | Week | Month | Year | All time | Most Thanks Given: To member | By user
Author Post
kitjunky
Wed Jul 03 2013, 02:17pm
Member No: #24347
Joined: Feb 19 2012
Location: Uk
Does anyone have any experience removing the door panels. looking to replace the speakers as the factory fitted ones on my new DS4 are shall we say pants. I can see 2 torx screws along the back edge but can't see how to remove the door pull lever off or how to get at the hidden screws on the main pull handle. Obviously the rest will be pop on clips.

Thanks in hope
BigJohnD
Wed Jul 03 2013, 02:23pm

Member No: #82
Joined: Jan 22 2007
Location: Hoylake

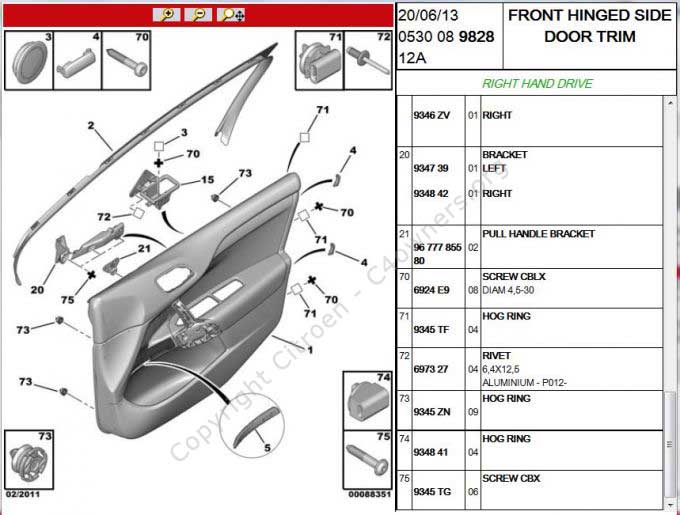

Does this exploded diagram help?

1 User said Thank You to BigJohnD for this Post :
 kitjunky (03 Jul 2013 : 15:25)
Dave_Retired.
Thu Jul 04 2013, 01:19am

Member No: #1
Joined: Aug 07 2006
Location: Northumberland
kitjunky wrote ...

Does anyone have any experience removing the door panels. looking to replace the speakers as the factory fitted ones on my new DS4 are shall we say pants. I can see 2 torx screws along the back edge but can't see how to remove the door pull lever off or how to get at the hidden screws on the main pull handle. obviously the rest will be pop on clips.

Door handle surround simply clips off

Switch Panel has 1 Torx screw going down in the centre of the pull part then lever out from the back edge as it hooks under the trim at the front.
1 User said Thank You to Dave_Retired. for this Post :
 kitjunky (15 Jul 2013 : 15:55)
kitjunky
Mon Jul 15 2013, 03:56pm
Member No: #24347
Joined: Feb 19 2012
Location: Uk
Thanks for all the info, hope this helps others interested in upgrading the speakers.
Speekerfreek
Fri Nov 29 2013, 10:52am
Member No: #6481
Joined: Dec 07 2008
Location: Scunthorpe
I know this was posted a little while ago but incase anyone needs this. Even after seeing the diagram above there was still a bit of guess work so I took this photo while I was sorting an annoying rattle earlier today.

Red circles = pop clips
Blue circles = torx screws

3 User said Thank You to Speekerfreek for this Post :
 BigJohnD (29 Nov 2013 : 12:16) , Dave_Retired. (29 Nov 2013 : 12:58) , Aethandor (27 Aug 2015 : 13:30)
gligi
Wed Mar 05 2014, 05:46am
Member No: #34457
Joined: Feb 25 2014
Location: Hrvatska
Hi all!
Is it different procedure of removing the back door panel and positions of the clips on C4 (2005. prod. date). Thank you for help.
Dave_Retired.
Wed Mar 05 2014, 05:58am

Member No: #1
Joined: Aug 07 2006
Location: Northumberland
Nope, same procedure.
addsmith
Sun Nov 19 2017, 06:13am
Member No: #49720
Joined: Oct 24 2017
Location: Birmingham
Hi,

I have lost a screw from the door panel; anyone know where I can get a replacement? I don’t have any scrap yards near so that’s no really an option..

Many thanks,
Adam
yovavb
Sat Nov 25 2017, 12:55pm
Member No: #14234
Joined: Jun 19 2010
Location: israel
I got the push clips from Citroen dealer for a reasonable price, I think it was 2 for a Euro or a bit more. so the screws should be the same.
