Citroen C4 Engine and Performance Guide

All the engine details together
on 21 June 2011
by c4owner author list print the content item create pdf file of the content item
in C4 Owners Model Reviews
hits: 3542
 7.5 - 37 votes -

How do the different engines available compare in the C4 and DS4 range. This guide has been complied from Citroen's own figures so you can easily compare what is currently available.


Citroën New C4 'Petrol' Engine Spec and Performance May 2011 - ALL Euro 5 Spec. Citroën UK Official Guide
Engine VT1 95
manual 		VTi 120
manual		 VTi 120
automatic		 THP 155
EGS6
Capacity (cc) 1397 1598 1598 1598
Max power CEE (kW/rpm) 70/6000 88/6000 88/6000 115/6000
Max torque CEE (Nm/rpm) 135/4000 160/4250 160/4250 240/1400
Max Speed (mph) 113 120 117 133
0-62 mph (secs) 11.9 10.8 12.5 8.7
Urban Cycle MPG (Exclusive) 34.4 32.1 - (31.7) 28.2 32.8
Extra Urban MPG (Exclusive) 57.6 60.1 - (58.9) 55.4 55.4
Combined MPG - (Exclusive) 46.3 45.6 - (44.8) 40.9 44.1
CO2 (g/km) (Exclusive) 140 143 - (146) 159 148

N.B. Official Government test / fuel consumption figures - actual achieved will depend on individual driving style and conditions. Insurance groups vary by engine size/trim level

Citroën New C4 'HDi' Engine Spec and Performance May 2011 - ALL Euro 5 Spec. Citroën UK Official Guide


Engine HDi 90
manual		 HDi 110
6-speed manual		 e-HDi 110
Airdream EGS6		 HDi 150
6-speed manual
Capacity (cc) 1560 1560 1560 1997
Max power CEE (kW/rpm) 68/4000 82/3600 82/3600 110/3750
Max torque CEE (Nm/rpm) 230/1750 270/1750 270/1750 340/2000
Max Speed (mph) 112 118 118 129
0-62 mph (secs) 12.9 11.3 11.2 8.6
Urban Cycle MPG (Exclusive) 54.3 48.7 (47.9) 60.1 - (57.6) 42.8
Extra Urban MPG - (Exclusive) 78.5 72.4 - (70.6) 74.3 -(70.6) 68.9
Combined MPG - (Exclusive) 67.3 61.4 - (60.1) 67.3 - (64.2) 56.5
CO2 (g/km) (Exclusive) 110 119 (122) 109 - (114) 130

N.B. Official Government test / fuel consumption figures - actual achieved will depend on individual driving style and conditions. Insurance groups vary by engine size/trim level

The above table is an abridged version of the Citroën original. Previous model technical Data is available at Citroën C4 UK Previous Specifications provided for comparison purposes only

Citroën New DS4 'Petrol' Engine Spec and Performance June 2011 - ALL Euro 5 Spec. Citroën UK Official Guide


Engine VTi 120
manual		 THP 155
EGS6		 THP 200
6-speed manual
Capacity (cc) 1598 1598 1598
Max power CEE (kW/rpm) 88/6000 115/6000 147/5800
Max torque CEE (Nm/rpm) 160/4250 240/1400 275/1700
Max Speed (mph) 120 133 146
0-62 mph (secs) 12.2 9.9 8.5
Urban Cycle MPG 34.0 31.4 33.6
Extra Urban MPG 56.5 55.4 54.3
Combined MPG 45.6 43.5 44.1
CO2 (g/km) 144 149 149

N.B. Official Government test / fuel consumption figures - actual achieved will depend on individual driving style and conditions. Insurance groups vary by engine size/trim level

Citroën New DS4 'HDi' Engine Spec and Performance June 2011 - ALL Euro 5 Spec. Citroën UK Official Guide


Engine HDi 110
6-speed manual		 e-HDi 110
Airdream EGS6		 HDi 160
6-speed manual
Capacity (cc) 1560 1560 1997
Max power CEE (kW/rpm) 82/3600 82/3600 120/3750
Max torque CEE (Nm/rpm) 270/1750 270/1750 340/2000
Max Speed (mph) 118 118 132
0-62 mph (secs) 12.4 12.4 9.3
Urban Cycle MPG 47.9 58.9 42.8
Extra Urban MPG 70.6 68.9 65.7
Combined MPG 60.1 64.2 55.4
CO2 (g/km) 122 114 - 134

N.B. Official Government test / fuel consumption figures - actual achieved will depend on individual driving style and conditions. Insurance groups vary by engine size/trim level

The above table is an abridged version of the Citroën original. Previous model technical Data is available at Citroën C4 UK Previous Specifications provided for comparison purposes only

Citroën C4 'Picasso' UK Engine Spec and Performance June 2011 Citroën C4 Picasso Official Guide


Engine 1.6i 16v VTi
120hp		 1.6i 16v THP
155hp EGS		 HDi 110
6-speed manual		 e-HDi 110
EGS6		 HDi 110
Airdream EGS6		 HDi 150
6-speed manual		 HDi 150
EGS6
Capacity (cc) 1598 1598 1560 1560 1560 1997 1997
Max power CEE (kW/rpm) 88/6000 115/6000 82/3600 82/3600 82/3600 110/3750 120/3750
Max torque CEE (Nm/rpm) 160/4250 240/1400 285/1750 285/1750 285/1750 340/2000 300/1750
Max Speed (mph) 116 127 112 113 113/112 121 121
0-62 mph (secs)
Picasso/Grand Picasso		 12.1/12.3 9.4/9.8 12.8/13.1 13.3/13.5 13.3/13.5 9.9/10.2 10.9/11.9
Urban Cycle (mpg)
Picasso/Grand Picasso		 30.4/30.4 31.0/31.0 44.1/43.5 48.7/47.1 45.4/52.3 38.7/38.7 42.8/42.8
Extra Urban (mpg)
Picasso/Grand Picasso		 52.3/52.3 50.4/49.6 62.8/61.4 61.4/58.9 62.8/61.4 58.9/58.9 62.8/62.8
Combined (mpg)
Picasso/Grand Picasso		 40.9/40.9 40.9/40.4 54.3/53.3 56.5/54.3 58.9/57.6 49.6/49.6 53.3/53.3
CO2 (g/km)
Picasso/ (Grand Picasso)		 159 (159) 159 (162) 135 (139) 132 (136) 125 (129) 149 (149) 137 (137)

N.B. Official Government test / fuel consumption figures - actual achieved will depend on individual driving style and conditions. Insurance groups are estimated and vary by engine size/trim level


C02The above table is an abridged version of the Citroën original. Previous model technical Data is available at Citroën Technical Specification Archive provided for comparison purposes only

The Grand Picasso and 5 seat Picasso share the same engine range however not all are available in each model variant.

For all the latest Technical Information and current model specifications you should consult the Citroën UK web site

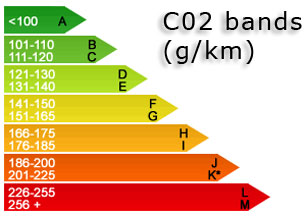

For details of what the C02 Emission figures mean in actual Licence Duty take a look at the current rates here at the DVLA web site

How accurate is the fuel gauge in a Citroën C4? Take a look the forum here

Take a look at the revised Hatch/Coupe Colour range here link

Last updated: 20th June 2011


How big is a C4 or DS4? - click the images to find out

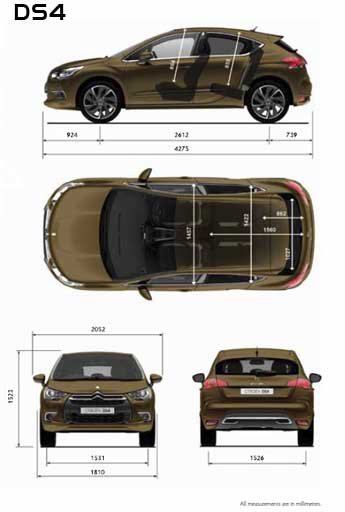

DS4



Hatch/Berline and Coupe Please note these are correct (as far as we are aware) at December 2010.

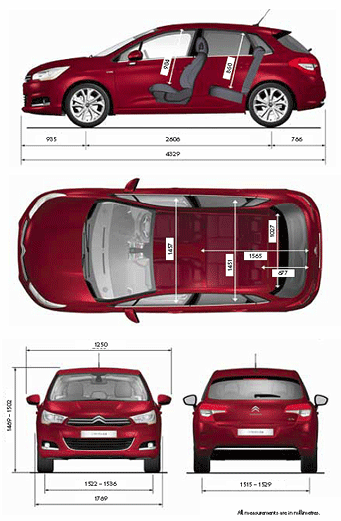

New C4 December 2011 onward



C4 2004-2008



Facelift C4 Coupe and Hatch July 2008 - December 2010



C4 Picasso and Grand Picasso
